产品简介

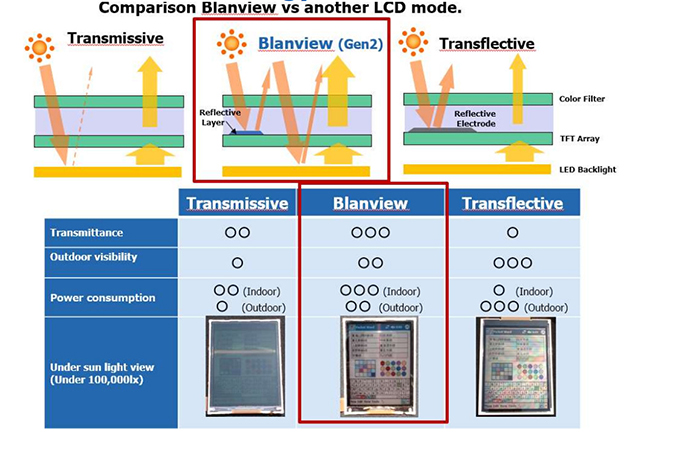

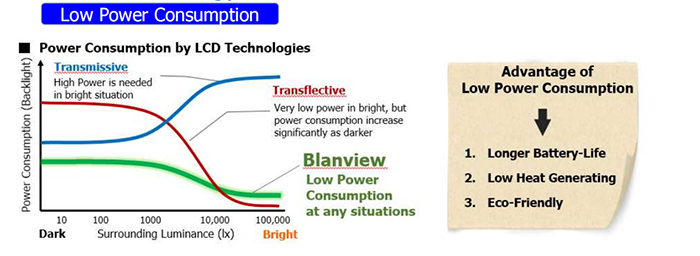

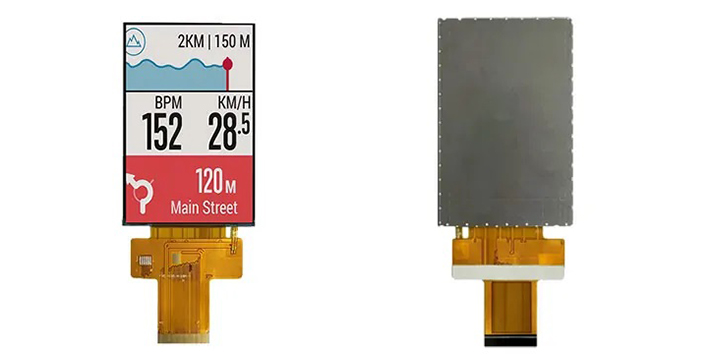

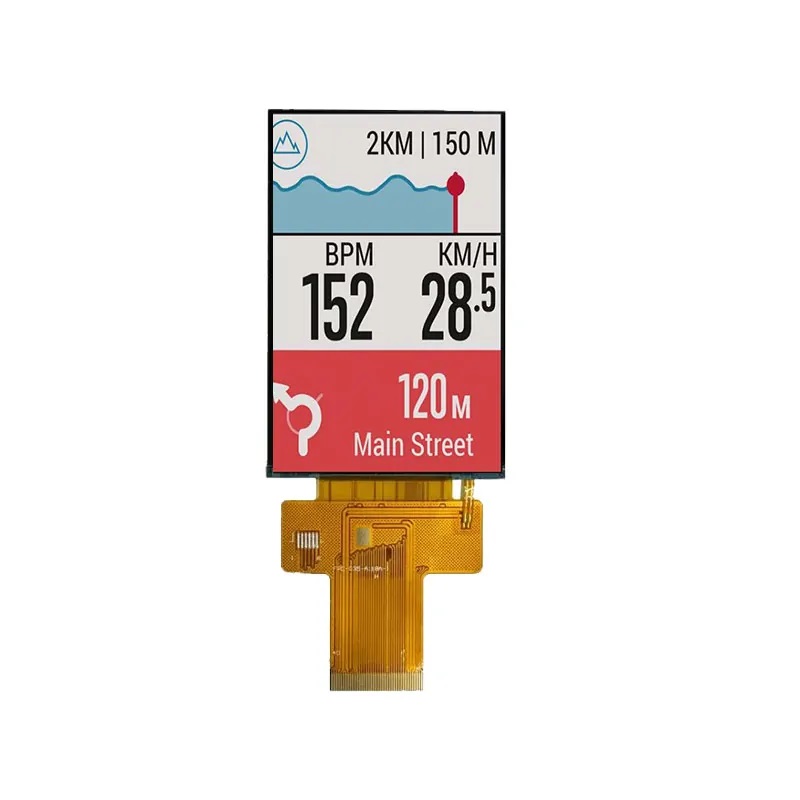

ET035TR01-VT为3.5英寸透反射式TFT-LCD液晶显示触摸屏模组，分辨率320×480，采用常黑显示模式，宽视角设计。支持MCU 8/16位并行与SPI串行双接口，50Pin FPC连接。亮度150+12% cd/m²，依靠环境光反射实现户外阳光下清晰可视，低功耗特性突出。外形尺寸52.26×80.6×2.21mm，有效显示面积48.96×73.44mm，超薄结构。工作温度-20~70℃，存储温度-30~80℃，带触摸功能。适用于户外手持设备、便携式仪器、低功耗智能终端、工业控制及阳光直射环境下的显示交互场景。
更多3.5英寸反射液晶显示屏参考
ET035TR02-VT (282x470, MCU/SPI, 150+12%nits, -20~70°C, 51.32x86.61mm, CTP(光学))
TX09D40VM3CAA (240x320, TTL, 340nits, -20~70°C, 64x86mm, 4w-RTP)
TX09D40VM3CBA (240x320, TTL, 430nits, -30~80°C, 64x86mm)
TX09D30VM1CCA (240x320, TTL, 250nits, -20~70°C, 64x86mm, 4w-RTP)
ET035TR01-TSRP (240x320, CPU/RGB/SPI, 100nits, -20~70°C, 64x85mm, 4w-RTP)
ET035TR02-TSRP (240x320, TTL, 150nits, -20~70°C, 64x85mm, 4w-RTP)
COM35H3R08ULC (240x320, TTL, 250nits, -20~70°C, 63.5x85mm)
COM35H3R10UTC (240x320, TTL, 200nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3R25ULC (240x320, CPU/SPI, 250nits, -20~70°C, 63.5x58mm)
COM35H3R12ULC (480x640, TTL, 330nits, -20~70°C, 63.5x85mm)
COM35H3P70ULC (480x640, MIPI, 900尼特, -20~70°C, 61x81.75毫米)
ET035A6448-1 (480x640, TTL, 120尼特, -10~60°C, 64x85毫米)
COM35H3R14UTC (480x640, TTL, 265尼特, -20~70°C, 63.5x85毫米, 4w-RTP)
COM35H3P58ULC (320x240, TTL, 600尼特, -30~85°C, 79.8x66.5毫米)
COM35H3R16ULC (320x240, TTL, 600尼特, -20~70°C, 76.9x63.9毫米)
COM35H3R18UTC (320x240, TTL, 480尼特, -20~70°C, 76.9x63.9毫米, 4w-RTP)
ET035TR01-TV (320x240, CPU/RGB/SPI, 150尼特, -20~70°C, 52.26x80.6毫米)
ET035TR01-VT (320x480, MCU/SPI, 150+12%尼特, -20~70°C, 52.26x80.6毫米, CTP(光学))
COM35H3R07ULC (640x960, MIPI, 400尼特, -20~70°C, 54.56x83.7毫米)
